Residential Grade 15Amp on/off Toggle Light Switch YQTS115

Short Description:

Toggle Switch, Residential Grade, Single-pole




Product Detail

Product Tags

product-description1

Feature

-High Quality
The toggles and frames are constructed from high-impact resistant thermoplastic and offer long service life.

-Quick Push-in Wiring
Provide both quick push-in wiring and side wiring. Quick wiring push-in terminals accept #14AWG solid copper wire only. Side wiring terminal screws accept wire up to #12AWG copper or copper-clad wire.

-Easy Installation

Simple and straightforward installation; Break-off plaster ear for best flush alignment. Narrow slim body design leaves more room for wires in the standard junction box.

- Wide Applications
Residential grade toggle light switch is suitable for houses, condos, apartments and most commercial areas that require only 15A switches such as offices, schools, stores, shops, restaurants, public facilities, and hotels.

Part Number

YQTS115

YQTS315

YQTS415

Current Rating

15 Amp

15 Amp

15 Amp

Voltage

120-277V AC

120-277V AC

120-277V AC

Switch Type

Single Pole

Three-way

Four-way

Switch Style

 Toggle Switch

Toggle Switch

Toggle Switch

Face Material

Polycarbonate,Metal

Polycarbonate,Metal

Polycarbonate,Metal

Side Wired

Back  Wired

Push In  Wired

Color

White,Ivory, Light almond, Gray, Black, Brown

Certification

UL/CUL Listed

UL/CUL Listed

UL/CUL Listed

Environmental

Flammability UL94, V2 Rating

Flammability UL94, V2 Rating

Flammability UL94, V2 Rating

Operating Temperature

-40°C (without impact) to 75°C

-40°C (without impact) to 75°C

-40°C (without impact) to 75°C

Warranty

2 years

2 years

2 years

Advantage

- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM .
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

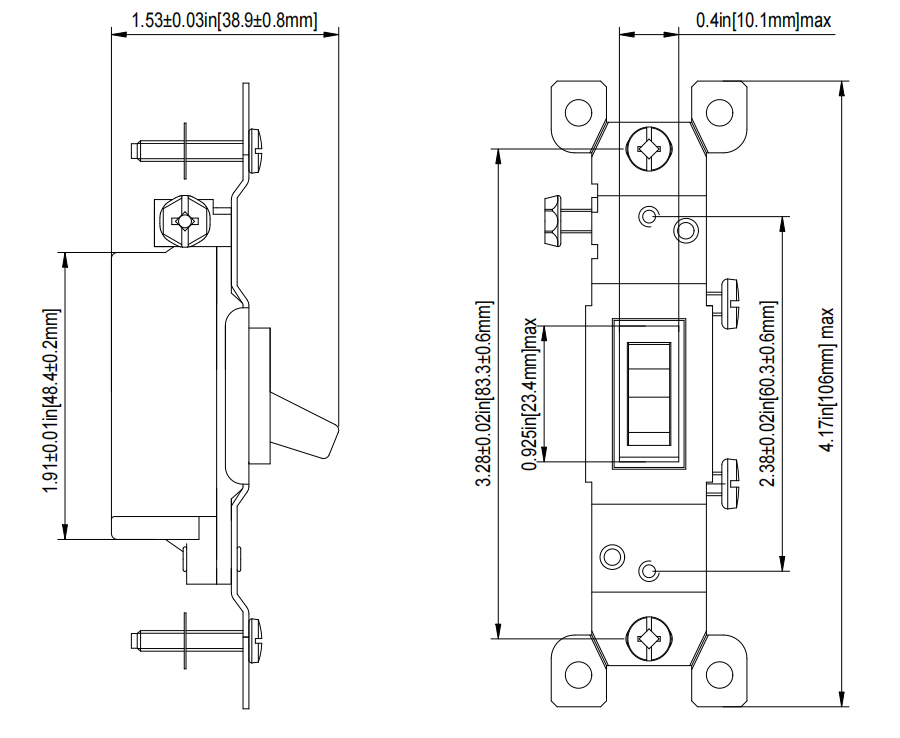

Dimension

product-description2

product-description6

TESTING & CODE COMPLIANCE

- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility
