Residential Grade 15A Tamper-Resistant Duplex Receptacle YQ15R-STR

- No-fade Gloss
A non-fade gloss finish integrated into the thermo resistant body and high quality color ensure consistent and bright white coloring throughout the entire outlet.
- Tamper-Resistant Technology
The high-performance 15 Amp tamper-resistant receptacles give you the highest possible capacity, efficiency, reliability and safety in any receptacle you will find today.
- All-Thermoplastic Body
An extra-hard thermo-endused body resists scratching and chipping, maintains a sleek look and enhances temperature resistance.
- Secure Installation
Washer type break-off plaster ears and slim design for a secure and tough installation.

Features

- Tamper-resistant (TR) receptacles prevent unwanted objects from being inserted.
- High impact-resistant polycarbonate thermoplastic cover and body for long service life
- Side wire terminals accept #12 or #14 AWG solid copper or stranded wire
- Shallow body design for maximum wiring; backstab or side options.
- All devices fit standard wall boxes and are suitable for ganging
- Easy-access green hex head ground screw
- Captive mounting screws
- Washer-type break-off plaster ear for best flush alignment
- Large head combination screws for fast wiringade of polycarbonate
- Push in #14 AWG Cu solid wire for 15A branch circuit only r onded wire

Details

Advantage

- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM .
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

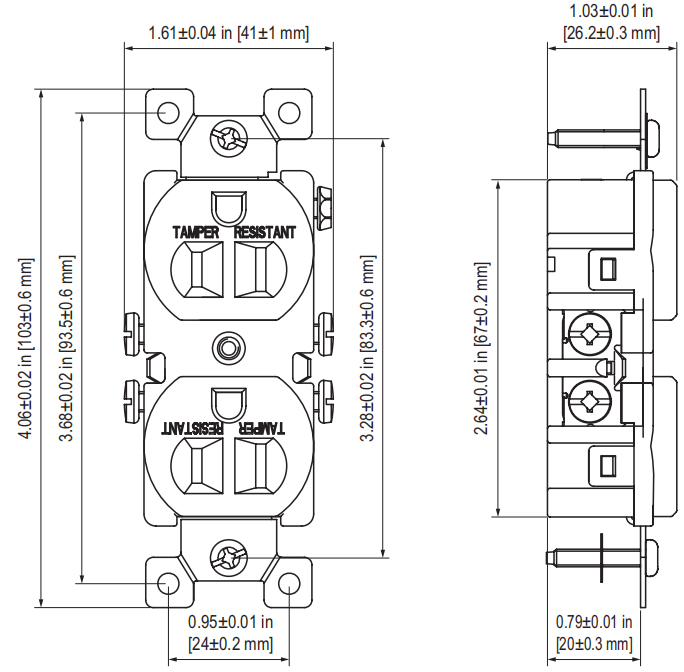

Dimension

TESTING & CODE COMPLIANCE

- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility

MATERIAL CHARACTERISTICS

- Environmental: Flammability UL94, V2 Rating
- Operating Temperature:
From -40°C (without impact) to 75°C maximum continuous
