Residential Grade 15A Tamper-Resistant Decorator Receptacle YQ15R-DTR
- Tamper-Resistant Technology
The high-performance 15 Amp tamper-resistant receptacles give you the highest possible capacity, efficiency, reliability and safety in any receptacle you will find today.
- High-Impact Resistant
Built to withstand accidental drops and pressure during installation.
- Automatic Grounding Screw
Equipped with Grounded screw and grounded clip.
-Breakable Plaster Ears
option of leaving the plaster ears on for a firmer installation, prevents 'floating'.
Features
- US utility patented for TR mechanism
- Built-In protective shutter mechanism designed to prevent the insertion of foreign objects into the receptacle contact openings. Allows easy insertion of properly rated plugs
- Clearly visible "TR" marking on the face of device
- Durable construction made of high impact-resistant polycarbonate thermoplastic cover and body for long service life.
- Slotted, Phillips and Robertson tri-combo screw heads offer greater installation flexibility
- Green grounding screw and self-grounding clip for automatic grounding in grounded metal wall boxes
- Shallow design for maximum wiring room in box
- Washer-type break-off plaster ear for best flush alignment
- All devices fit standard wall boxes and are suitable for ganging
- Side wire terminals accept #12 or #14 AWG solid copper or stranded wire it onlwire terminals accept #12 or #14 AWG solid copper or stranded wire
Details
| Part Number |
YQ15R-DTR |
YQ15RS-DTR |
| Receptacle Amp |
15 Amp |
15 Amp |
| Voltage |
125VAC |
125VAC |
| Tamper Resistant |
√ |
√ |
| Self-Grounding |
— |
√ |
| Side Wired |
√ |
√ |
| Back Wired |
— |
— |
| Push In Wired |
√ |
√ |
| Color |
White,Ivory, Light almond, Gray, Black, Brown |
|
| Material |
Polycarbonate |
Polycarbonate |
| NEMA |
5-15R |
5-15R |
| Certification |
UL/CUL Listed |
UL/CUL Listed |
| Environmental |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
| Operating Temperature |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
| Warranty |
2 years |
2 years |
Advantage
- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM.
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

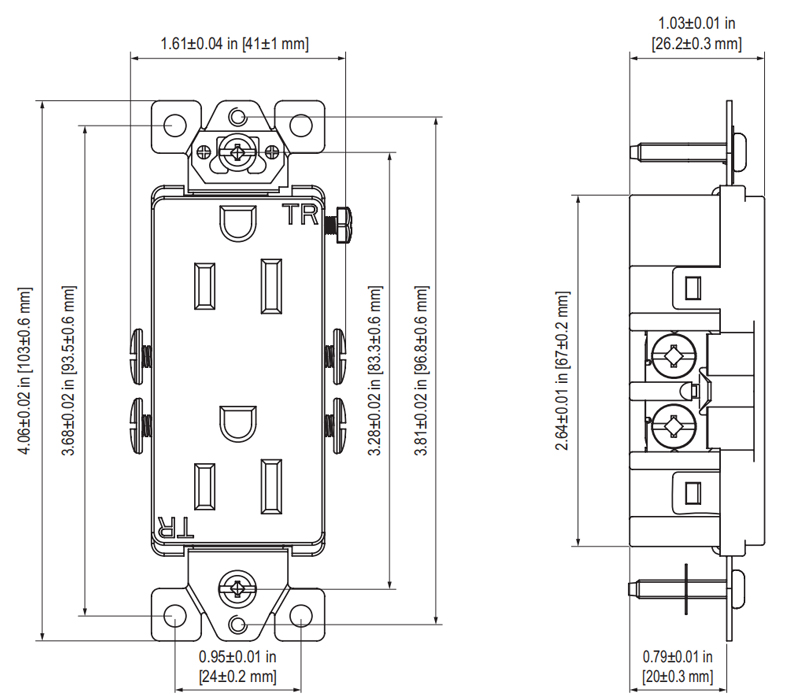

Dimension
TESTING & CODE COMPLIANCE
- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility
MATERIAL CHARACTERISTICS
- Environmental:
Flammability UL94, V2 Rating
