Residential Grade 15A Standard Duplex Receptacle YQ15R-S

Features

- Made of polycarbonate
- Push in #14 AWG Cu solid wire for 15A branch circuit only
- Side wire terminals accept #12 or #14 AWG solid copper or stranded wire
- Shallow design for maximum wiring room
- All devices fit standard wall boxes and are suitable for ganging
- Easy-access green hex head ground screw
- Captive mounting screws
- Washer-type break-off plaster ear for best flush alignment
- Large head combination screws for fast wiring
- Terminal screws backed out ready for wiring
- Combination Slot/Phillips head mounting and terminal screws ease installation- - Made of polycarbonate
- Push in #14 AWG Cu solid wire for 15A branch circuit only
- Side wire terminals accept #12 or #14 AWG solid copper or stranded wire

Details

Advantage

- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM.
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

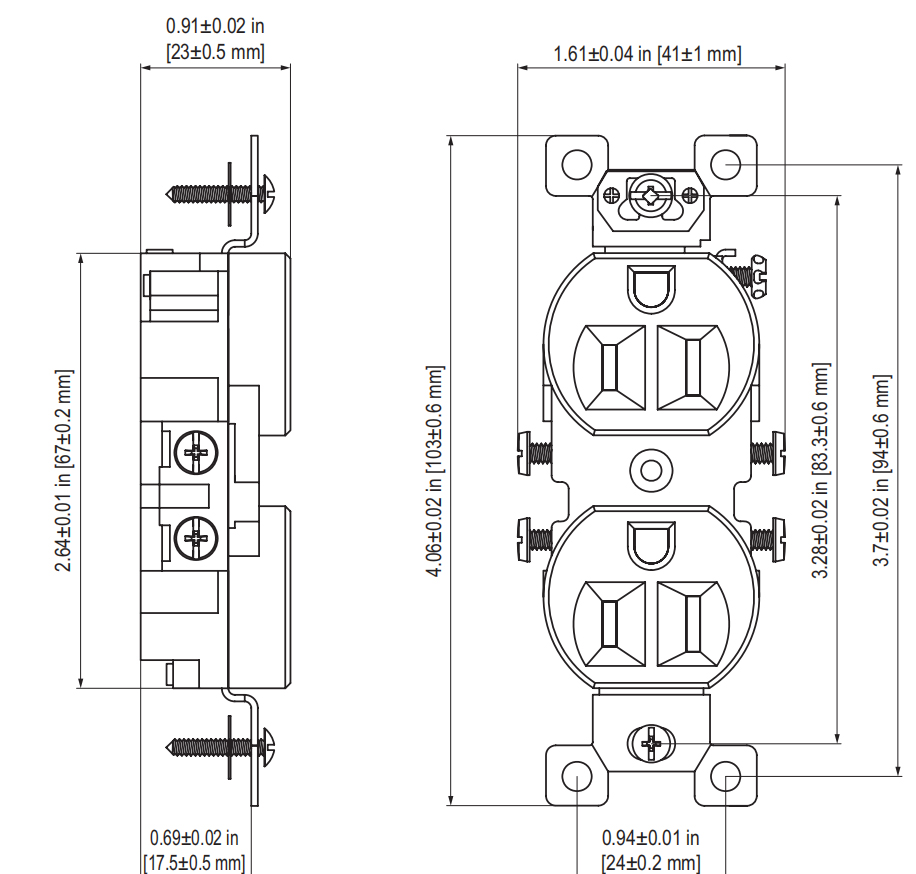

Dimension

TESTING & CODE COMPLIANCE

- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility

MATERIAL CHARACTERISTICS

- Environmental:
Flammability UL94, V2 Rating
