Duplex Double Toggle Light Switch YQTS215N

Short Description:

Combination Device, Residential Grade, Two Single-pole Toggle Switches

Duplex toggle switch controls two separate loads from a single location


Product Detail

Product Tags

product-description1

Feature

-High Quality
This togglee switch is made from high-quality polycarbonate thermoplastic for its unrivaled resisto heat and impacts.

-Easy Installation
Simple and straightforward installation; breakable plaster ears to prevent "floating" installations; narrow body leaves rooms for other light switches, outlets, sensors, home automation or smart switches.

- Wide Applications
Residential grade toggle light switch is suitable for houses, condos, apartments and most commercial areas that require only 15A switches such as offices, schools, stores, shops, restaurants, public facilities, and hotels.

Part Number

YQTS215N

YQLTS215

YQRTS215

Current Rating

15 Amp

15 Amp

15 Amp

Voltage

120V AC

120V AC

120V AC for Switch

125V AC for Receptacle

Switch Type

Single Pole

Single Pole

Single Pole

Switch Style

 Toggle Switch

Toggle Switch

Toggle Switch

Face Material

Polycarbonate,Metal

Polycarbonate,Metal

Polycarbonate,Metal

Side Wired

Back  Wired

Push In  Wired

Color

White,Ivory, Light almond, Gray, Black, Brown

Certification

UL/CUL Listed

UL/CUL Listed

UL/CUL Listed

Environmental

Flammability UL94, V2 Rating

Flammability UL94, V2 Rating

Flammability UL94, V2 Rating

Operating Temperature

-40°C (without impact) to 75°C

-40°C (without impact) to 75°C

-40°C (without impact) to 75°C

Warranty

2 years

2 years

2 years

Advantage

- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM .
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

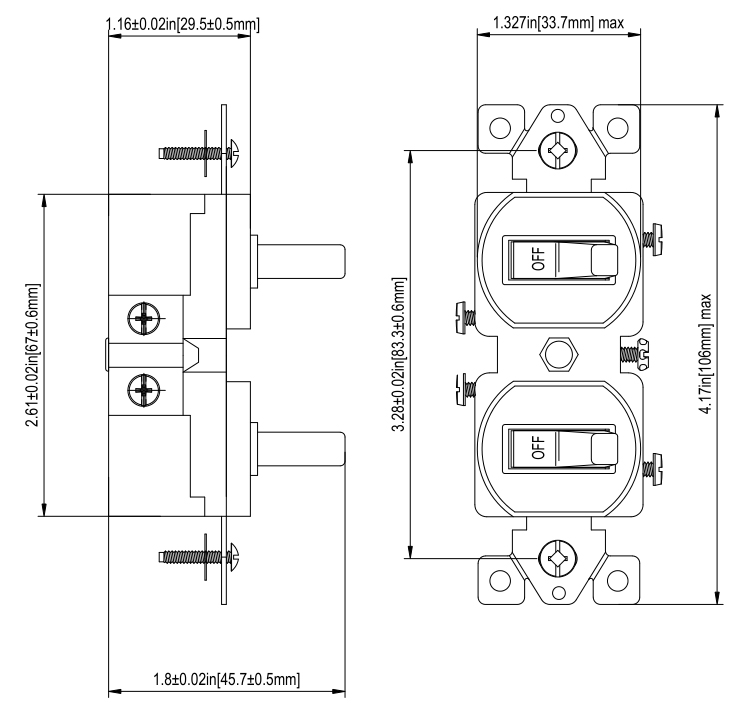

Dimension

product-description3

product-description6

TESTING & CODE COMPLIANCE

- UL/CUL Listed
- ISO9001 Registered
