Combination Single Pole Toggle Switch and Receptacle YQRTS215
Feature
-Long-lasting Quality
Residential grade combination device features one single pole toggle switch and one single receptacle, made from high-quality polycarbonate thermoplastic for its unrivaled resist to heat and impacts.
-Easy Installation
A self-grounding clip for automatic connection in a properly grounded metal wall plate.
Washer type break-off plaster ears for best flush alignment.
Side wiring terminal screws accept wire up to #12AWG copper or copper-clad wire.
Shallow body design so device and wires fit easily into junction box.
- Universal Application
Suitable for residential use and most commercial areas that require only 15A receptacles/ switches.
| Part Number |
YQTS215N |
YQLTS215 |
YQRTS215 |
YQRTS215-TR |
| Current Rating |
15 Amp |
15 Amp |
15 Amp |
15 Amp |
| Voltage |
120V AC |
120V AC |
120V AC for Switch 125V AC for Receptacle |
120V AC for Switch 125V AC for Receptacle |
| Switch Type |
Single Pole |
Single Pole |
Single Pole |
Single Pole |
| Switch Style |
Toggle Switch |
Toggle Switch |
Toggle Switch |
Toggle Switch |
| Face Material |
Polycarbonate,Metal |
Polycarbonate,Metal |
Polycarbonate,Metal |
Polycarbonate,Metal |
| Side Wired |
√ |
√ |
√ |
√ |
| Back Wired |
— |
— |
— |
— |
| Push In Wired |
— |
— |
— |
— |
| Color |
White,Ivory, Light almond, Gray, Black, Brown |
|||
| Certification |
UL/CUL Listed |
UL/CUL Listed |
UL/CUL Listed |
UL/CUL Listed |
| Environmental |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
| Operating Temperature |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
| Warranty |
2 years |
2 years |
2 years |
2 years |
Advantage
- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM .
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, GE, Schneider, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

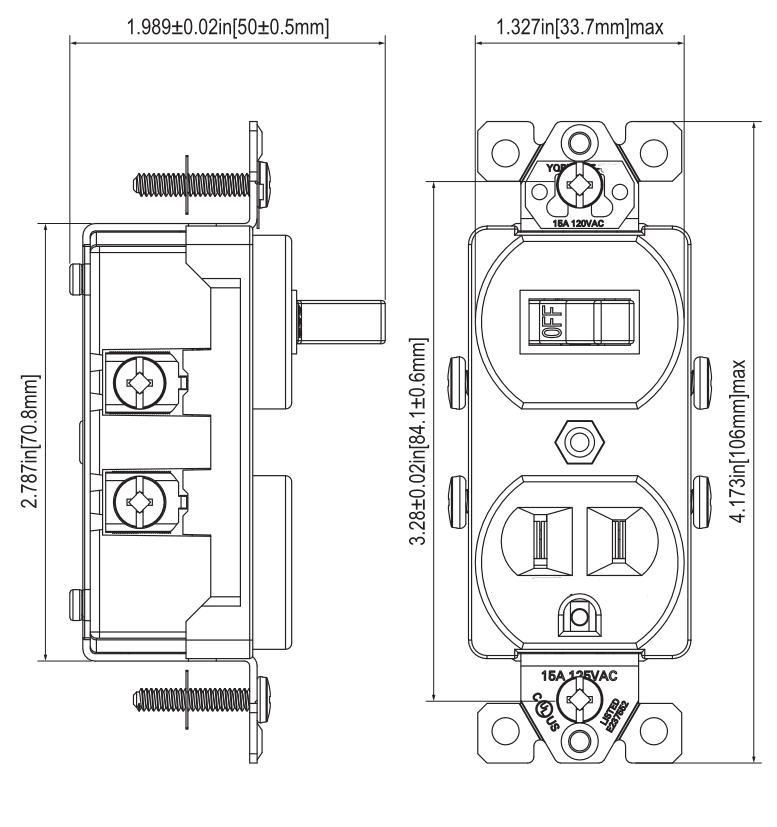

Dimension
TESTING & CODE COMPLIANCE
- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility
