Combination Decorator Paddle Receptacle and Rocker Switch YQRDS215
Feature
-High Quality & Long-lasting Quality
Residential grade combination device features one single pole rocker switch and one decorator paddle receptacle, made from impact-resistant polycarbonate thermoplastic material for its unrivaled resisto heat and impacts. All MTLC products are UL listed and 100% inspected before shipment.
-Easy to Install
Washer type break-off plaster ears (yokes tabs) and slim design for a secure and tough installation. Compact design fits in a standard electrical box.
- Universal Application
The outlet is suitable for residential use in homes, apartments, condominiums and for commercial use in corporate buildings, hotels, and restaurants that only require a 15A outlet.
| Part Number |
YQTS215N |
YQRDS215N |
YQRDS215N-TR |
| Current Rating |
15 Amp |
15 Amp |
15 Amp |
| Voltage |
120V AC |
120V AC for Switch 125V AC for Receptacle |
120V AC for Switch 125V AC for Receptacle |
| Switch Type |
Single Pole |
Single Pole |
Single Pole |
| Switch Style |
Toggle Switch |
Rocker Switch |
Rocker Switch |
| Face Material |
Polycarbonate,Metal |
Polycarbonate,Metal |
Polycarbonate,Metal |
| Side Wired |
√ |
√ |
√ |
| Back Wired |
— |
— |
— |
| Push In Wired |
— |
— |
— |
| Color |
White,Ivory, Light almond, Gray, Black, Brown |
||
| Certification |
UL/CUL Listed |
UL/CUL Listed |
UL/CUL Listed |
| Environmental |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
Flammability UL94, V2 Rating |
| Operating Temperature |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
-40°C (without impact) to 75°C |
| Warranty |
2 years |
2 years |
2 years |
Advantage
- Set up in 2003, with almost 20 years experience in USA Wiring Devices & Lighting Controls, we are capable of developing new items in a short time.
- Work as a partner with World & USA TOP 500 Companies and offer our customers complete product lines by both OEM and ODM .
- Implement PPAP System including MCP, PFMEA, Flow Diagram to well control the product quality.
- Meet both 3rd party and customers’ Factory Audit including THD, Wal-mart, Costco, etc.
- Highly automated production lines which contribute cost saving and assure better lead time.
- Advanced capacity which offers fourty eight 40HQ per month is leading the industry in China.
- UL approved lab offers expert testing and covers all concerns.
- All products UL/ETL approved.

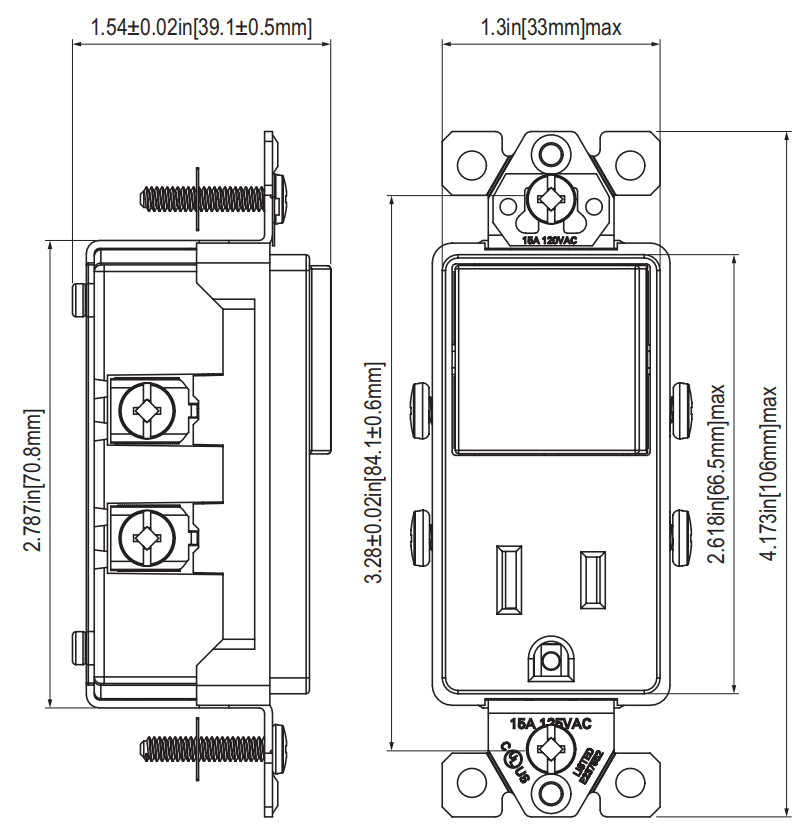

Dimension
TESTING & CODE COMPLIANCE
- UL/CUL Listed
- ISO9001 Registered
Manufacturing Facility
